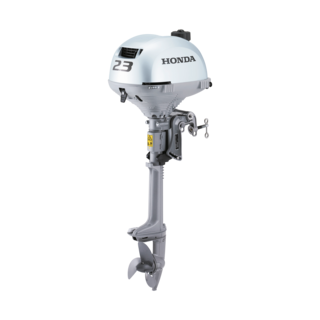

BF2.3 |
| Features |
| Power |
|
| Charging Output |
n/a |
| Propulsion |
|
| Propeller |
3-blade plastic |
| Safety |
|
| Trim Limit Switch |
No |
| Oil Pressure Alert |
No |
| Temperature Alert |
No |
| Rev-Limiter |
No |
| Speedometer Pickup |
No |
| Trim & Tilt |
|
| Trim & Tilt |
Manual |
| Trim Range |
4-stage 5° - 10° - 15° - 20° |
| Tilt Range |
75° |
| Dimensions, Weights And Capacities |
| Weights |
|
| Dry Weight |
13.6kg |
| Dimensions |
|
| Transom Height (mm) |
1,109 |
| Length (mm) |
412 |
| Overall Width (mm) |
285 |
| Warranty |
| Warranty |
|
| Domestic Warranty |
7 Year* |
| Commercial Warranty |
3 Year* |
| Performance |
| Performance |
|
| Rated Power |
2.3HP @ 5,500 RPM |
| Powertrain |
| Engine |
|
| Engine Type |
4-stroke OHV |
| Starting System |
Recoil |
| Exhaust |
Under water, above propeller |
| Gear Ratio |
2.42:1 |
| Displacement |
57cc |
| Cylinders |
1 |
| Valves |
2 |
| Bore & Stroke (mm) |
45 x 36 |
| Full Throttle Range (rpm) |
5,000-6,000 |
| Cooling System |
Forced air |
| Carburation |
Carburetor |
| Ignition System |
Transistorised Magneto |
