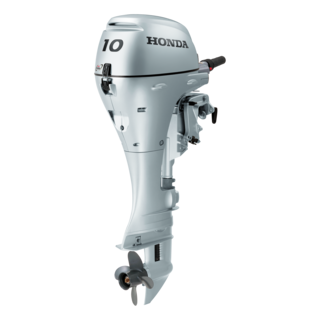

BF10 |
| Features |
| Power |
|
| Charging Output |
12-Amp (electric) / 6-Amp (manual) |
| Propulsion |
|
| Propeller |
4-blade aluminium |
| Safety |
|
| Trim Limit Switch |
No |
| Oil Pressure Alert |
Yes |
| Temperature Alert |
Yes |
| Rev-Limiter |
Yes |
| Speedometer Pickup |
No |
| Trim & Tilt |
|
| Trim & Tilt |
Manual |
| Trim Range |
5-stage 4°, 8°, 12°,16°, 20° |
| Tilt Range |
72° |
| Dimensions, Weights And Capacities |
| Weights |
|
| Dry Weight |
42kg |
| Dimensions |
|
| Height (mm) |
1,235 |
| Length (mm) |
610 |
| Width (mm) |
345mm |
| Warranty |
| Warranty |
|
| Domestic Warranty |
7 Year* |
| Commercial Warranty |
3 Year* |
| Performance |
| Performance |
|
| Rated Power |
10HP @ 5,500 RPM |
| Powertrain |
| Engine |
|
| Engine Type |
4-stroke OHC |
| Starting System |
Recoil/Electric |
| Exhaust |
Through prop |
| Gear Ratio |
2.33:1 |
| Displacement |
222cc |
| Cylinders |
2 |
| Valves |
4 |
| Bore & Stroke (mm) |
58 x 42 |
| Full Throttle Range (rpm) |
5,000-6,000 |
| Cooling System |
Water cooled |
| Carburation |
Carburetor |
| Ignition System |
PGM-IG |
