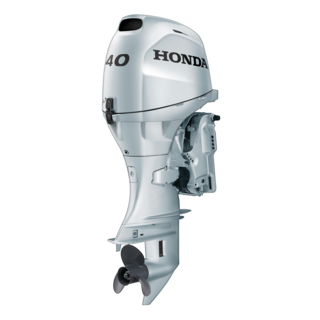

BF40 Remote |

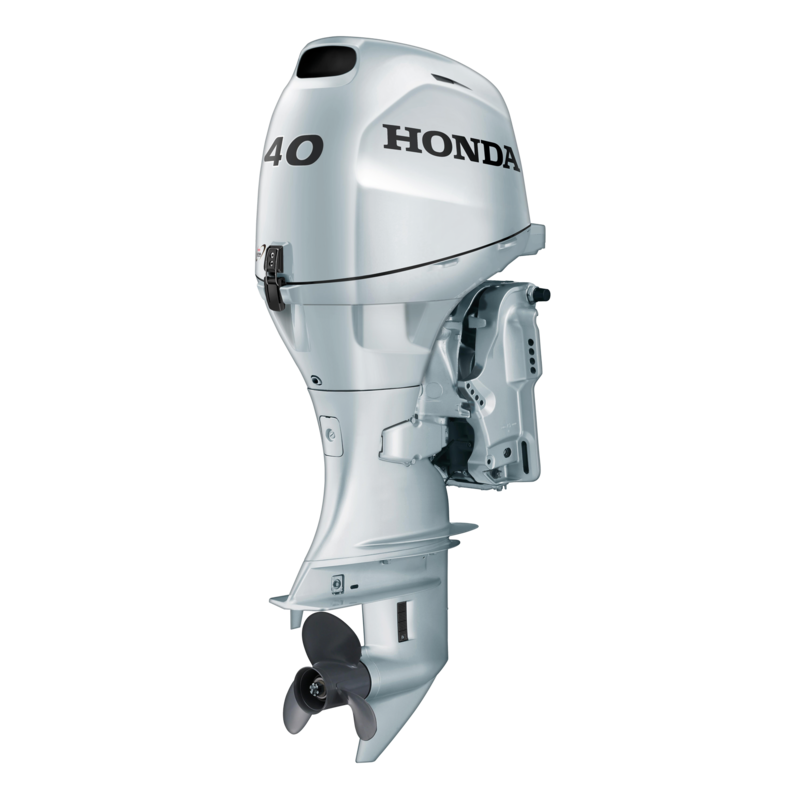

BF40 Tiller |
| Features |
| Power |
|
|
| Charging Output |
|
22-Amp |
| Propulsion |
|
|
| Propeller |
|
3-blade aluminium (tiller only) |
| Safety |
|
|
| Trim Limit Switch |
|
No |
| Oil Pressure Alert |
|
Yes |
| Temperature Alert |
|
Yes |
| Rev-Limiter |
|
Yes |
| Speedometer Pickup |
|
Yes |
| Trim & Tilt |
|
|
| Trim & Tilt |
|
Power Or Gas |
| Trim Range |
|
-4° to +16° |
| Tilt Range |
|
63° |
| Dimensions, Weights And Capacities |
| Weights |
|
|
| Dry Weight |
|
98kg |
| Dimensions |
|
|
| Transom Height (mm) |
|
1,364 |
| Length (mm) |
|
694 |
| Overall Width (mm) |
|
372 |
| Warranty |
| Warranty |
|
|
| Domestic Warranty |
|
7 Year* |
| Commercial Warranty |
|
3 Year* |
| Performance |
| Performance |
|
|
| Rated Power |
|
40HP @ 5,500 RPM |
| Powertrain |
| Engine |
|
|
| Engine Type |
|
4-stroke SOHC |
| Starting System |
|
Electric |
| Exhaust |
|
Through prop |
| Gear Ratio |
|
2.08:1 |
| Displacement |
|
808cc |
| Cylinders |
|
3 |
| Valves |
|
6 |
| Bore & Stroke (mm) |
|
70 x 70 |
| Full Throttle Range (rpm) |
|
5,000-6,000 |
| Cooling System |
|
Water Cooled |
| Carburation |
|
Fuel Injection |
| Ignition System |
|
Transistorised battery ignition |
