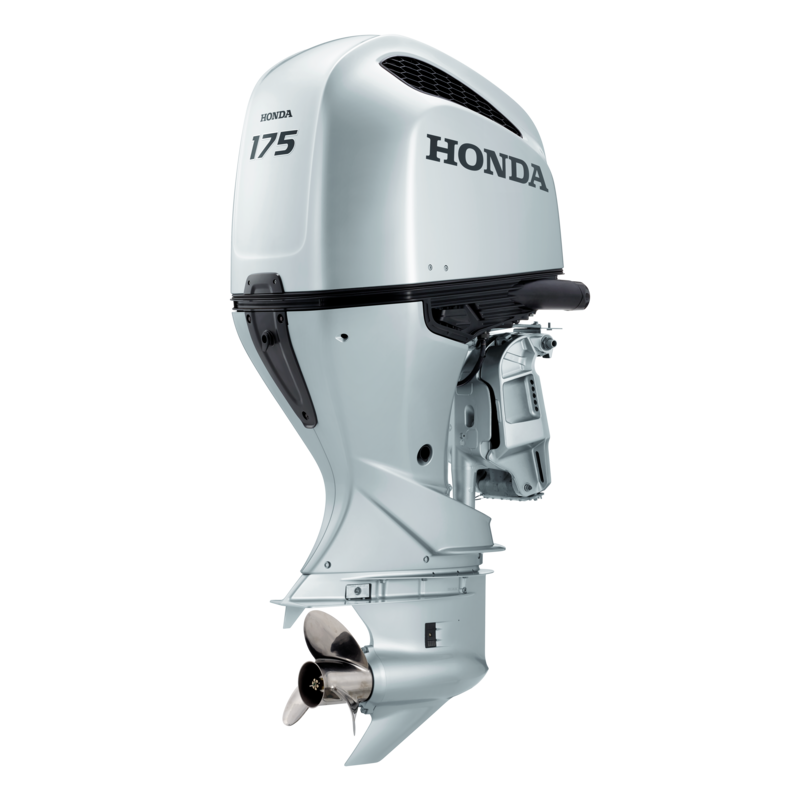

BF175 |
| Features |
| Power |
|
| Charging Output |
90-Amp |
| Propulsion |
|
| Propeller |
Optional |
| Safety |
|
| Trim Limit Switch |
Yes |
| Oil Pressure Alert |
Yes |
| Temperature Alert |
Yes |
| Rev-Limiter |
Yes |
| Speedometer Pickup |
Yes |
| Trim & Tilt |
|
| Trim & Tilt |
Power |
| Trim Range |
-4° to +16° |
| Tilt Range |
68° |
| Dimensions, Weights And Capacities |
| Weights |
|
| Dry Weight |
285kg |
| Dimensions |
|
| Height (mm) |
1916mm |
| Length (mm) |
948mm |
| Width (mm) |
660mm |
| Warranty |
| Warranty |
|
| Domestic Warranty |
7 Year* |
| Commercial Warranty |
3 Year* |
| Performance |
| Performance |
|
| Rated Power |
175 HP (128.7kW) @ 5500 RPM |
| Powertrain |
| Engine |
|
| Engine Type |
4-stroke SOHC |
| Starting System |
Electric |
| Exhaust |
Through prop |
| Gear Ratio |
2.00:1 (24/12) |
| Displacement |
3,583cc |
| Cylinders |
V6 |
| Valves |
24 |
| Bore & Stroke (mm) |
89 x 96 |
| Full Throttle Range (rpm) |
5,000-6000 |
| Cooling System |
Water cooled (Thermostatically controlled) |
| Carburation |
Fuel Injection |
| Ignition System |
Micro-computer programmed |
