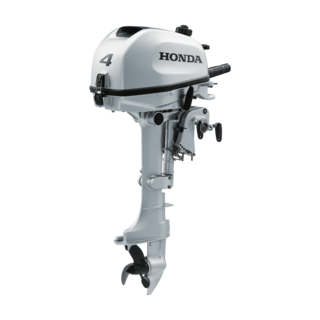

BF4 |
| Features |
| Power |
|
| Charging Output |
n/a |
| Propulsion |
|
| Propeller |
5 Model Available |
| Safety |
|
| Trim Limit Switch |
No |
| Oil Pressure Alert |
Yes |
| Temperature Alert |
No |
| Rev-Limiter |
Yes |
| Speedometer Pickup |
No |
| Trim & Tilt |
|
| Trim & Tilt |
Manual |
| Trim Range |
5-stage 4°, 8°, 12°,16°, 20° |
| Tilt Range |
70° |
| Dimensions, Weights And Capacities |
| Weights |
|
| Dry Weight |
27kg |
| Dimensions |
|
| Height (mm) |
1,147 |
| Length (mm) |
524 |
| Width (mm) |
347 |
| Warranty |
| Warranty |
|
| Domestic Warranty |
7 Year* |
| Commercial Warranty |
3 Year* |
| Performance |
| Performance |
|
| Rated Power |
4HP @ 5,500 RPM (2.9KW) |
| Powertrain |
| Engine |
|
| Engine Type |
4-stroke OHV |
| Starting System |
Recoil |
| Exhaust |
Under Water, Above Propeller |
| Gear Ratio |
2.08:1 |
| Displacement |
127cc |
| Cylinders |
1 |
| Valves |
2 |
| Bore & Stroke (mm) |
60 x 45 |
| Full Throttle Range (rpm) |
4,000-5,000 |
| Cooling System |
Water Cooled |
| Carburation |
Carburetor |
| Ignition System |
Digital CDI |
