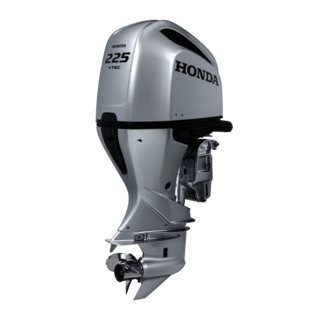

BF225 - Mechanical |

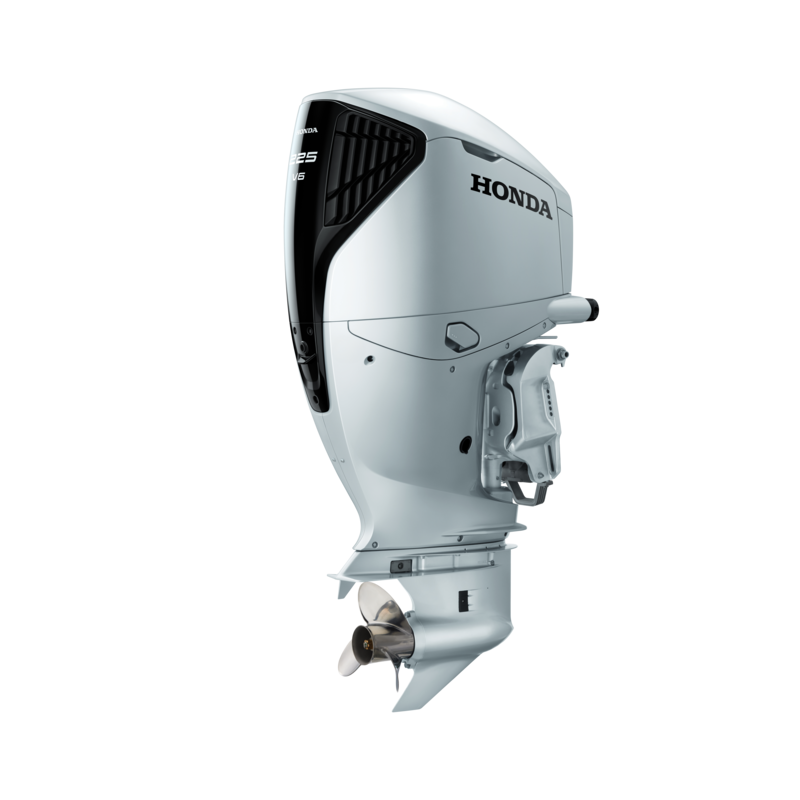

BF225 - Drive by Wire |
| Features |
| Power |
|
|
| Charging Output |
90A (60A Charging), AMP+ |
90A (60A Charging), AMP+ |
| Propulsion |
|
|
| Propeller |
Optional |
Optional |
| Trim & Tilt |
|
|
| Automatic Tilt |
N/A |
Standard |
| Power Trim & Tilt |
Standard |
Standard |
| Tilt Limit Setting |
Standard |
Standard |
| Trim Support |
N/A |
Standard |
| Technology |
|
|
| BLAST |
Standard |
Standard |
| Cruise Control |
N/A |
Standard |
| Lean Burn Control |
Standard |
Standard |
| Troll Control |
N/A |
Standard |
| VTEC |
Standard |
Standard |
| Dimensions, Weights And Capacities |
| Weights |
|
|
| Dry Weight |
X-Type(25"): 284kg / U-Type(25"): 289kg |
X-Type(25"): 286kg / U-Type(25"): 291kg |
| Dimensions |
|
|
| Transom Height (mm) |
X-Type(25"): 635 / U-Type(25"): 762 |
X-Type(25"): 635 / U-Type(25"): 762 |
| Overall Width (mm) |
666 |
666 |
| Warranty |
| Warranty |
|
|
| Domestic Warranty |
7 Year* |
7 Year* |
| Commercial Warranty |
3 Year* |
3 Year* |
| Performance |
| Performance |
|
|
| Rated Power |
225HP @ 5,500 RPM |
225HP @ 5,500 RPM |
| Powertrain |
| Engine |
|
|
| Fuel Delivery |
PGM-FI |
PGM-FI |
| Gear Shift |
F-N-R |
F-N-R |
| Engine Type |
4-Stroke SOHC 60° |
4-Stroke SOHC 60° |
| Starting System |
Electric |
Electric |
| Gear Ratio |
2.0:1 |
2.0:1 |
| Displacement |
3,583cc |
3,583cc |
| Cylinders |
6 |
6 |
| Valves |
24 |
24 |
| Bore & Stroke (mm) |
89 x 96 |
89 x 96 |
| Full Throttle Range (rpm) |
5,000-6,000 |
5,000-6,000 |
| Cooling System |
Water Cooled |
Water Cooled |
| Ignition System |
Microcomputer Programmed |
Microcomputer Programmed |
