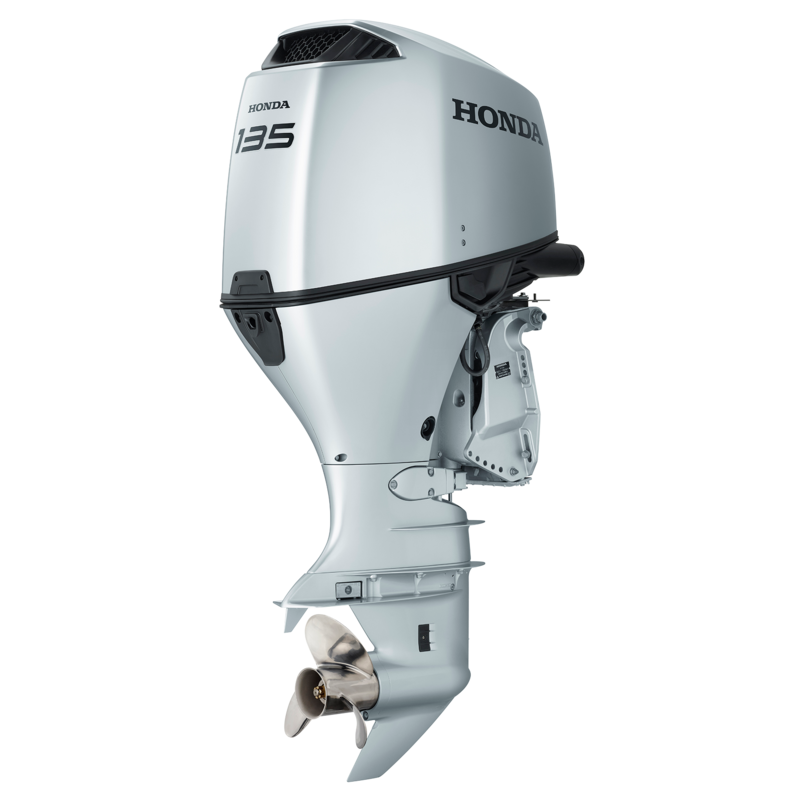

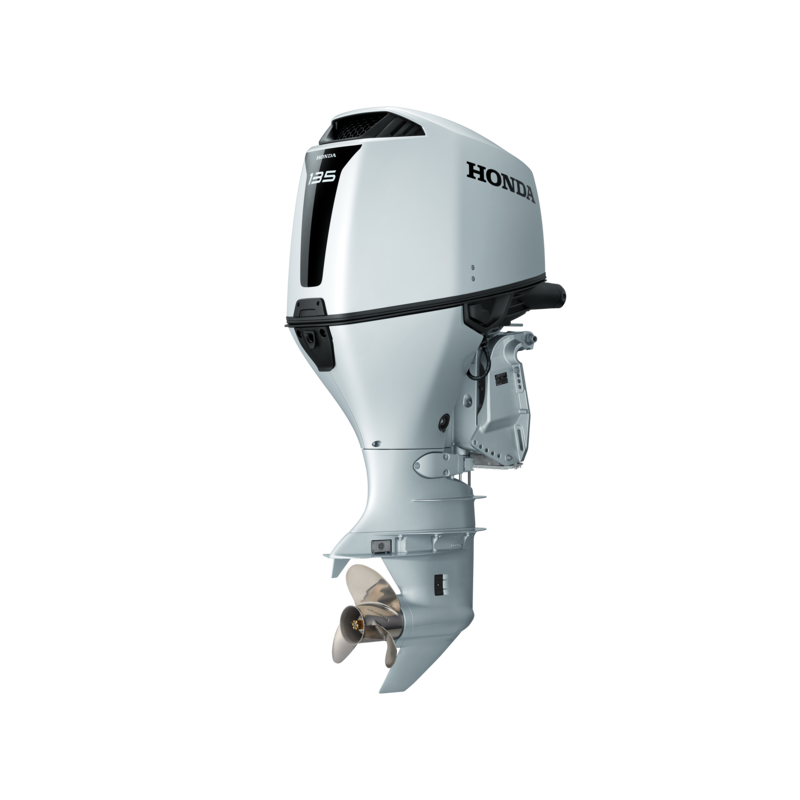

BF135 - Drive by Wire |
BF135 - Mechanical |
Features |
Power |
|
|
Charging Output |
55A (40A Charging) |
55A (40A Charging) |
Propulsion |
|
|
Propeller |
Optional |
Optional |
Trim & Tilt |
|
|
Automatic Tilt |
Standard |
N/A |
Power Trim & Tilt |
Standard |
Standard |
Tilt Limit Setting |
Optional |
Optional |
Trim Support |
Standard |
N/A |
Technology |
|
|
BLAST |
Standard |
Standard |
Cruise Control |
Standard |
N/A |
Lean Burn Control |
Standard |
Standard |
Troll Control |
Standard |
Standard |
VTEC |
N/A |
N/A |
Dimensions, Weights And Capacities |
Weights |
|
|
Dry Weight |
L-Type(20"): 221kg / X-Type(25"): 224kg |
L-Type(20"): 218kg / X-Type(25"): 221kg |
Dimensions |
|
|
Transom Height (mm) |
L-Type(20"): 508mm / X-Type(25"): 635mm |
L-Type(20"): 508 / X-Type(25"): 635 |
Overall Width (mm) |
618 |
618 |
Warranty |
Warranty |
|
|
Domestic Warranty |
7 Year* |
7 Year* |
Commercial Warranty |
3 Year* |
3 Year* |
Performance |
Performance |
|
|
Rated Power |
135HP @ 5500 RPM |
135HP @ 5500 RPM |
Powertrain |
Engine |
|
|
Fuel Delivery |
PGM-FI |
PGM-FI |
Gear Shift |
F-N-R |
F-N-R |
Engine Type |
4-Stroke DOHC |
4-Stroke DOHC |
Starting System |
Electric |
Electric |
Gear Ratio |
2.14:1 |
2.14:1 |
Displacement |
2,354cc |
2,354cc |
Cylinders |
4 |
4 |
Valves |
16 |
16 |
Bore & Stroke (mm) |
87 x 99 |
87 x 99 |
Full Throttle Range (rpm) |
5,000-6,000 |
5,000-6,000 |
Cooling System |
Water Cooled |
Water Cooled |
Ignition System |
Microcomputer Programmed |
Microcomputer Programmed |
