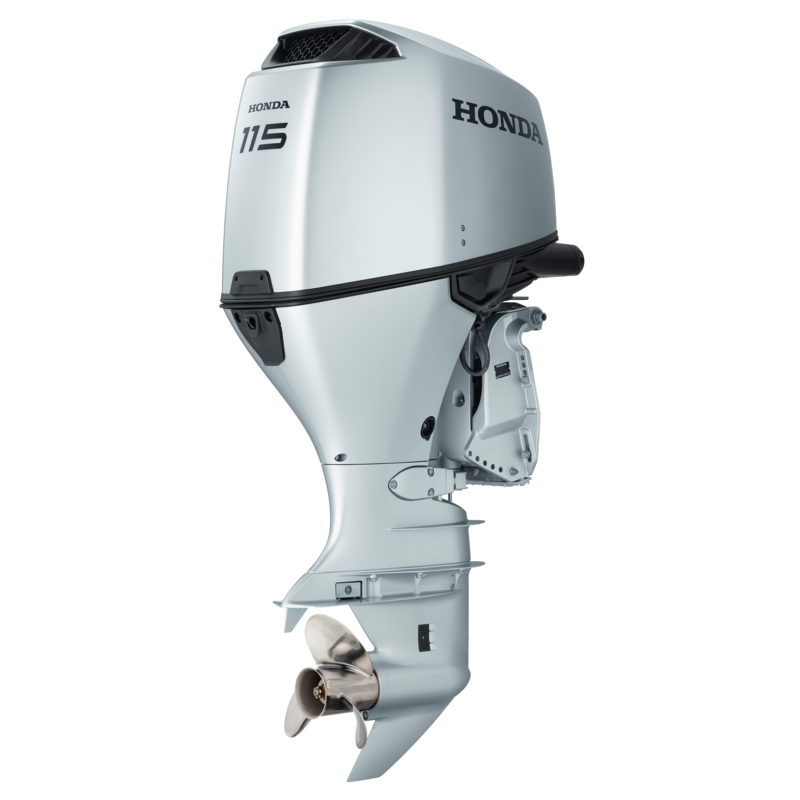

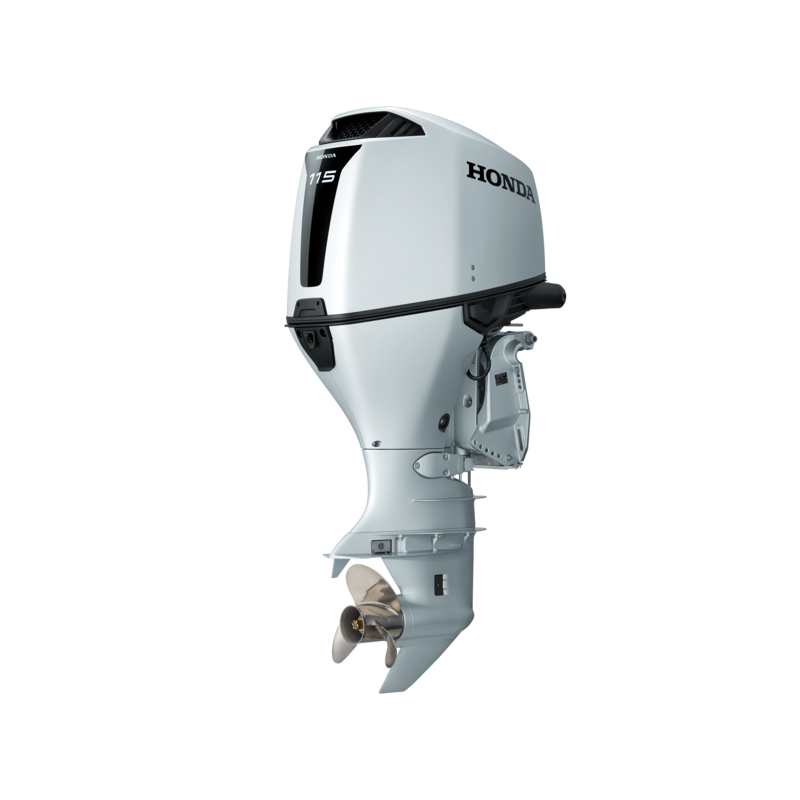

BF115 |
| Features |
| Power |
|
| Charging Output |
40-Amp |
| Propulsion |
|
| Propeller |
Optional |
| Safety |
|
| Trim Limit Switch |
- |
| Oil Pressure Alert |
Yes |
| Temperature Alert |
Yes |
| Rev-Limiter |
Yes |
| Speedometer Pickup |
Yes |
| Trim & Tilt |
|
| Trim & Tilt |
Power |
| Trim Range |
-4° to +16° |
| Tilt Range |
72° |
| Dimensions, Weights And Capacities |
| Weights |
|
| Dry Weight |
217kg |
| Dimensions |
|
| Height (mm) |
- |
| Length (mm) |
- |
| Width (mm) |
- |
| Warranty |
| Warranty |
|
| Domestic Warranty |
7 Year* |
| Commercial Warranty |
3 Year* |
| Performance |
| Performance |
|
| Rated Power |
115HP @ 5,250 RPM |
| Powertrain |
| Engine |
|
| Engine Type |
4-stroke DOHC |
| Starting System |
Electric |
| Exhaust |
Through prop |
| Gear Ratio |
2.14:1 |
| Displacement |
2,354cc |
| Cylinders |
Inline 4 |
| Valves |
16 |
| Bore & Stroke (mm) |
87 x 99 |
| Full Throttle Range (rpm) |
4,500-6,000 |
| Cooling System |
Water cooled |
| Carburation |
Fuel Injection |
| Ignition System |
Full transistorised battery ignition |
